Day 4: Creating Mobile Apps with MIT App Inventor: Blocks Programming

Although the App Inventor code is on blocks, instead of being typed in like Python, it has the same concepts: variables, lists, functions, etc.

Initialization

Set everything up so that the app starts the same way every time.

Global Variables

  • Create a variable to hold the list of holes variable

  • Create a variable to hold the score scorevar

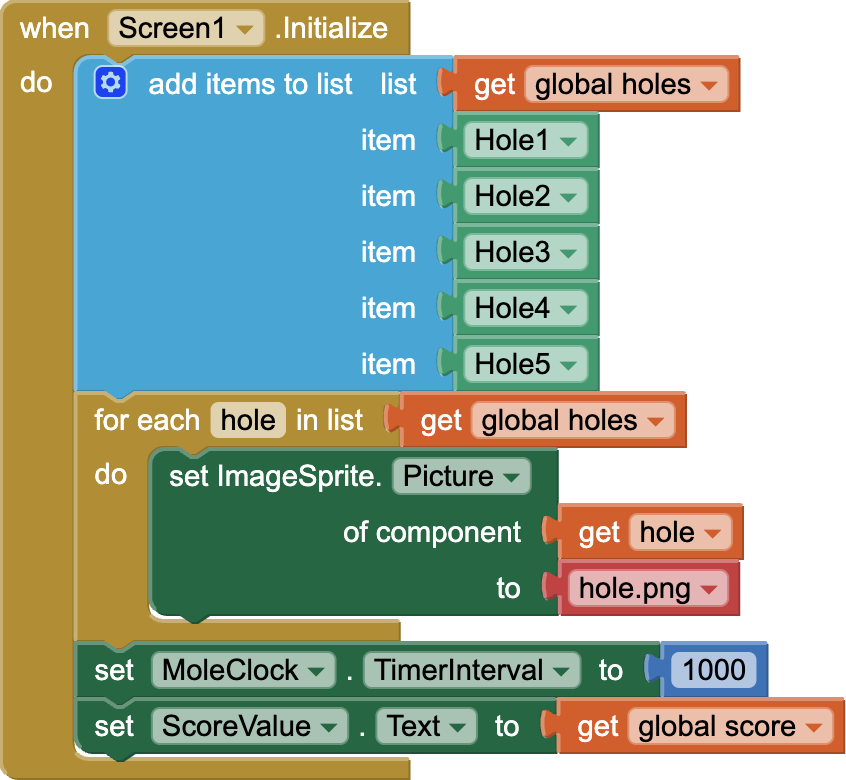

Screen Initialization

  • Fill the list with the holes
  • Initialize the hole sprites with the hole image
  • Initialize the timer to have to mole move once every second (1000 milliseconds)
  • Initialize the score value label with the initial score. initialize

Program the app

Write the code for the mole to pop out of the holes randomly, and write the code to add a point every time the user touches the mole.

Move the mole

Each sprite has a position on the canvas. That position is an (x,y) location.

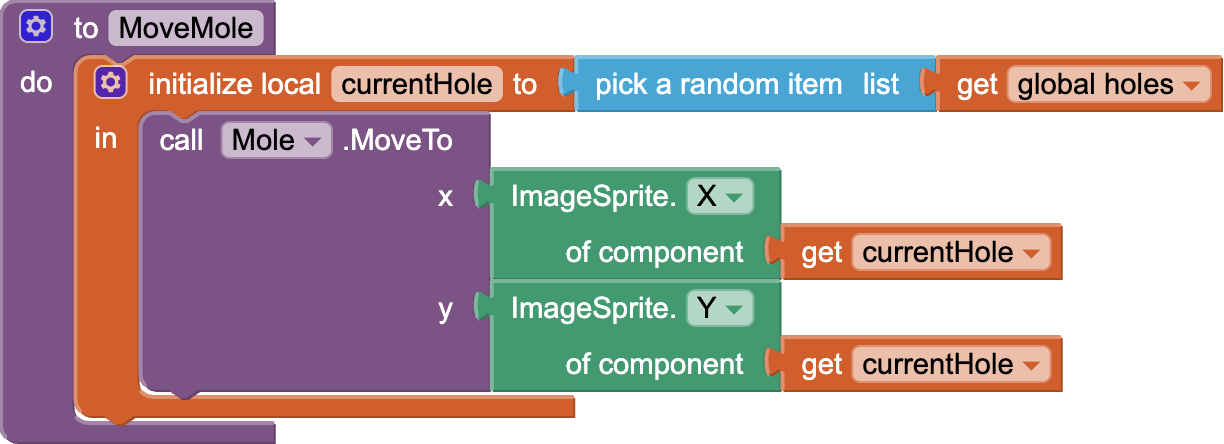

Create a procedure (function) to move the mole:

  • Set a local variable to be a random hole
  • Set the mole sprite's position to be the same position (X and Y position) as the random hole that was selected

procedure

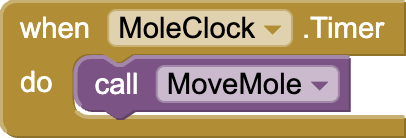

Use the clock to move the mole every time the timer goes off. timer

Keep score

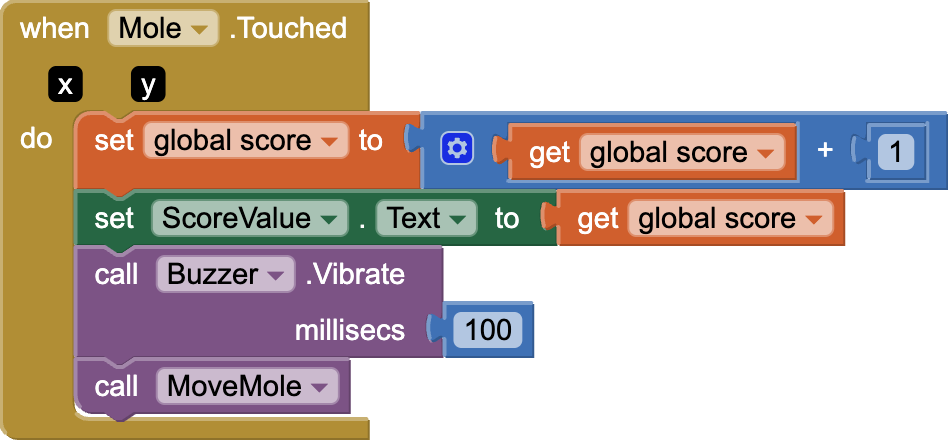

Whenever the player touches the mole sprite, update the score.

  • add 1 to the score
  • show the new score
  • use the sound component to vibrate the device
  • call the procedure to move the mole again updatescore
